포켓 레이져 타코메타

※ 제품특징

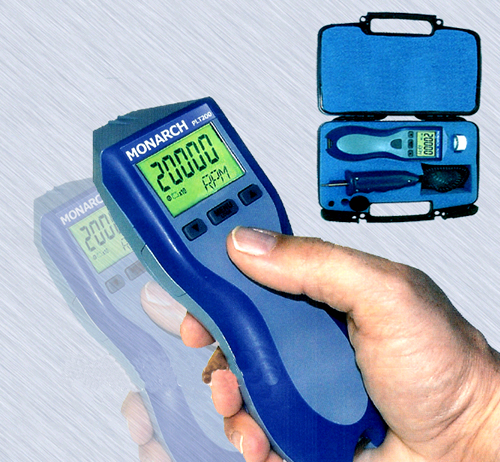

◈ PLT200 is a digital, battery-powered portable optical tachometer, which operates up to 25 feet* from a reflective target using a laser light source.

◈ The ergonomic design allows safe, direct line-of-sight viewing of both the target and the display at the same time, while providing a non-slip rubber surface for single hand operation.

◈ Multi-Function

PLT200 is a 32 function Tachometer/Ratemeter, Totalizer/Counter and Timer (stopwatch), which is programmable in both English and Metric linear rates.
Support is built-in for both our optional Remote Contact Assembly (RCA) and our Remote Sensors.
PLT200 has a TTL compatible Pulse Output to trigger devices like data collectors or stroboscopes.
The KIT is supplied complete with a Remote Contact Assembly including concave and convex tips and a 10 cm linear speed wheel and a 5 foot roll of reflective tape all in a latching carrying case.
* performance subject to intensity of ambient light irradiation.

※상세정보

◈ Features

• Operating Range up to 25 feet* (Class 3R visible laser)
• Accepts Remote Contact Assembly (optional)
• Accepts Remote Sensors (optional)
• TTL Pulse Output with 6 foot BNC Cable
• Auto Ranging/Fixed Decimal (user selectable)
• English and Metric Rates
• Tripod Mounting Bushing
• On-Target and Low Battery Indicators
• Rugged Rubberized Housing
• N.I.S.T. traceable Certificate of Calibration included

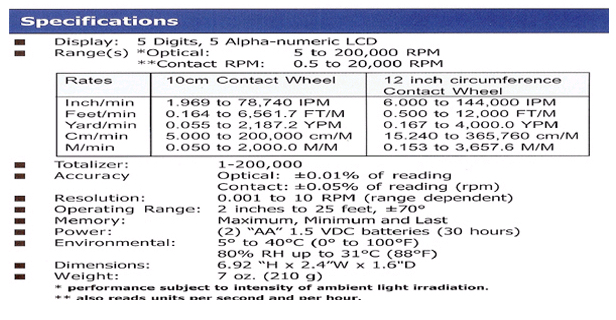

Specifications
• Display: 5 Digits, 5 Alpha-numeric LCD
• Range(s): Optical: 5 to 200,000 RPM
Contact RPM: 0.5 to 20,000 RPM (see rates)
• Accuracy: Optical:±0.01% of reading
Contact:±0.05% of reading (rpm)
• Totalizer: 1-200,000
• Resolution: 0.001 to 10 RPM (range dependent)
• Operating Range: 2 inches to 25 feet*, ±70°
• Memory: Maximum, Minimum and Last reading
• Power: (2) "AA" 1.5 VDC batteries (30 hours)
• Environmental: 5° to 40°C (0° to 100°F)
80% RH up to 31°C (88°F)
• Dimensions: 6.92 "H x 2.4"W x 1.6"D
• Weight: 7 oz. (210 g)
