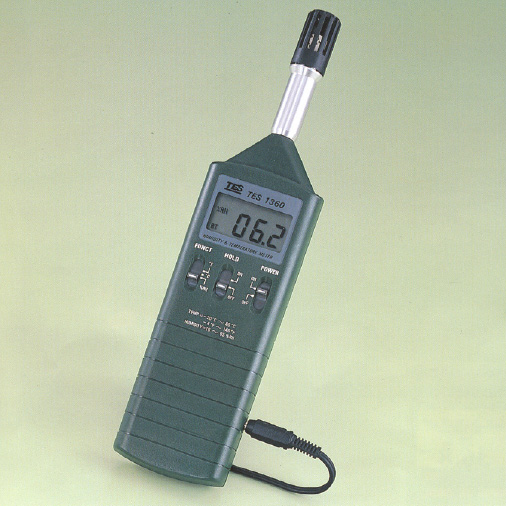

Humidity/Temperature Meter(온습도계) TES-1360

[제품특징]

• High Resolution of 0.1% R.H., 0.1℃ &℉
• Wide range of Relative Humidity and temperature measurment (℃ &℉)
• Data Hold function to hold the LCD reading
• Output jack for output signal working with "Chart Recorder"
• Compact, light weight & Simple operation

[제품사양]

• Display : 3-1/2 digital LCD display
• Measurement Range :
        Humidity : 10% ~ 95% R.H.
        Temperature : -20℃ ~ +60℃, -4℉ to +140℉
• Resolution : 0.1% R.H./0.1℃/0.1℉
• Accuracy(after calibration) :
         Humidity : ±3%R.H.(at 25℃, 30~95% R.H.)
                        ±5%R.H.(at 25℃, 10~30% R.H.)
         Temperature :   ±0.8℃, ±1.5℉
• Sensor type :
         Humidity        :  precision capacitance sensor
         Temperature  :  semiconductor sensor
• Response time :
          Humidity : 45%RH.→95%R.H. < = 3 min
                         90%RH.→45%R.H.  <= 5 min
          Temperature : 10 sec/1℃
• Sampling rate : 2.5 time per second
• Auxiliary outputs :
          Humidity : 10mV DC/1% R.H.
