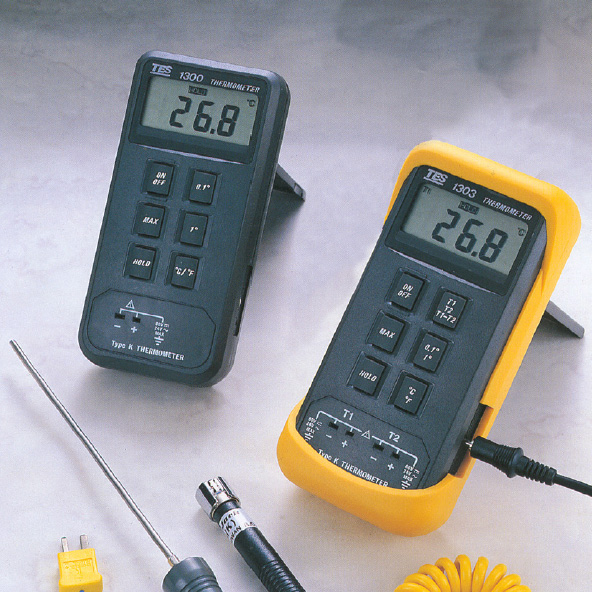

Thermometer(온도계) TES-1300/1303

[제품특징]

• Type "K" Thermocouple Input
• Room Temperature Compensated
• Switchable Resolution 0.1˚/1˚
• Aux output JACKS
• With ℃ & ℉switching
• T1 & T2 dual points display(1303)
• Max Hold Function
• T1-T2 differential measurement(1303)
• Data hold function
• Flip-up stand

[제품사양]

• Measuring Range : -50℃ ~ 1300℃, -50℉ ~ 1999℉
• Sensor : K Type thermocouple
• Input : Single Channel(TES-1300) / Dual Channel(TES-1303)
• Resolution : -50℃ ~ +199.9℃...0.1℃
                      -50℉ ~ +199.9℉...0.1℉
                      (Others 1℃/1℉)
• Accuracy :
  -50℃ ~ 199.9℃...0.3% rdg + 1℃
  -50℉ ~ 199.9℉...0.3% rdg + 2℉
  -50℃ ~ 1000℃...0.5% rdg + 1℃
  -50℉ ~ 1999℉. ..0.5% rdg + 2℉
  1000℃ ~ 1300℃..0.75% rdg + 1℃
  (apply to mainframe only at 23℃±5℃)
• Auxilitary Outputs : (for Data Recording)
           1mV/℃(℉)...at 0.1℃/0.1℉ range
           0.1mV/℃(℉)...at 1℃/1℉ range

• Temperature Coefficient :
       Less than 0.1 time the applicable accuracy specification per ℃(℉)
