●제품특징

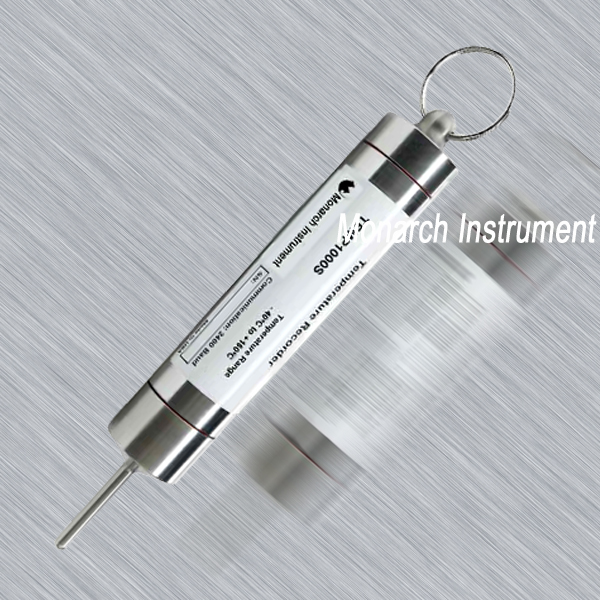

◙ 온도 데이터 자체 기록계(DataChart®Temp1000S)
Rugged Temperature Recorder
◈
Description:
▶ This Rugged Temperature Logger is a waterproof, battery
powered, stand-alone, device used for automatically recording temperatures
between -40°c and 150°C.
▶ This all-in-one compact, portable, easy to use
device will measure and record up to 32,767 temperature measurements.
▶
Because it is Rugged, it can be used in harsh environments.
▶ The Temp1000S
is a major leap forward in both size and performance.
▶ Its real time clock
ensures that all data is time and date stamped.
▶ The storage medium is
non-volatile solid state memory, providing maximum data security even if the
battery becomes discharged.
▶ Its small size allows it to fit almost
anywhere. Data retrieval is simple.
▶ Plug it into an empty com port and our
easy to use software does the rest.
◈ Features:
1. Rugged
2.
Temperature Range: -40°C to +150°C
3. Memory Size: 32,767 Readings
4.
Resolution: 0.05°C
5. Programmable Start Time
6. Reusable
7.
N.I.S.T. Traceable
8. User Calibration through Software
9. Calibration
Date Stored in Memory
10. No Programming Experience Necessary
11. Real
Time Operation
12. Low Cost
13. Quick Setup
●상세정보
◈ Specifications:
1. Temperature Range: -40°C to 150°C
2. Calibration
Temperature Accuracy: ±0.5°C (0°C to +50°C)
3. Temperature Resolution:
0.05°C
4. Temperature Calibration: Digital calibration is available through
software.
5. N.I.S.T. Traceable: N.I.S.T. certificates available
6.
Calibration Date: Automatically recorded within device to alert user when
calibration is required.
7. Recording Interval: 2 sec , 1every 12hrs.
8.
Start Time: Start time and date are programmable through software.
9. Real
Time Recording: Device may be used with PC to monitor and record data in real
time.
10. Memory: 32,767 temperature readings.
11. User-Replaceable
Battery: 1 years typical.
12. Time Accuracy: ±1 min/month at 20°C
13.
Data Format: Date and Time stamped, % RH, mg. of water vapor concentration, °C,
°F, °K, °R.
14. Shock resistance: Drop proof to 5’.
15. Weight: 8 oz.
(225g)
16. Computer Interface: RS232C Serial Port
17. Software: Windows
95/98/NT/2000/XP based software for complete control and operation.
18.
Operating Environment: -40°C to + 150°C, 0% to 100% RH
19. Dimensions: 1.00”
dia. X 4.5”
20. Material: Stainless Steel
|
|
