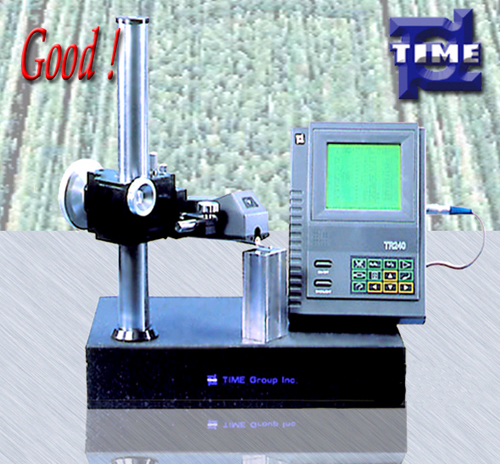

표면 조도 측정기

※ 제품특징

◈ 특징:

• 표면 거칠기 측정값: Ra, Rq, Rz, R3z, Rt, Ry(ISO), Ry(DIN), Rm, Rp, Rm, S, SK, TP, &etc.
• 측정 길이(mm/inch): 0.25/0.01, 0.8/0.03, 2.5/0.1
• Scanning 길이(Lt): 5-7 Cut-off
• Measuring 길이(lm): 3-5 Cut-off
• Max. travel of driver: 17.5mm/0.7inch
• Digital wave filter: Rc(acct. to GB6062) / M1(acct. to DIN 4777) / M2(acct. to DIN 4776)
• 스탠드 (Option)

※ 상세정보

• 측정센서 각도: 90°
• 측정센서 측정 반지름: 5µm LCD
• 160×128 point (with background lighting)
• Serial port: Standard RS232
• Working voltage:7.2V
• Working current: <120mA
• Background lighting current: <60mA
• 전원: 6×1.2V NiCd or NiMh rechargeable batteries
• 전원 사용시간: NiCd 500mAh, NiMh 1000mAh
• 충전 전류: 250mA(2-3h, full)
• 충전adapter:1A/12V,220V
• 사용 환경온도: temperature: 0-40°C
• 사용 환경습도: <90%
